cSoftOsd Class Reference

cSoftOsd - SoftHdDevice plugin software OSD class More...

#include <softhdosd.h>

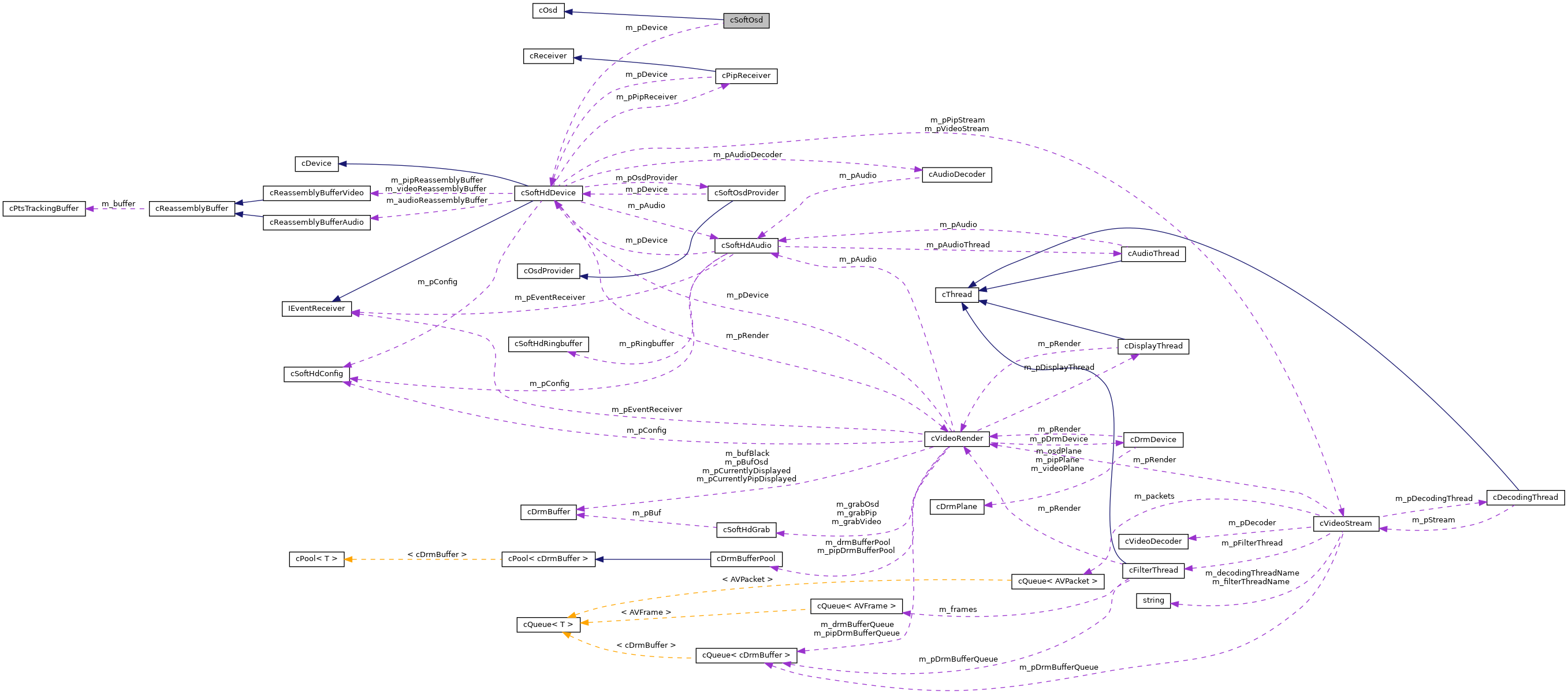

Collaboration diagram for cSoftOsd:

Public Member Functions
	cSoftOsd (int, int, uint, cSoftHdDevice *)
	cSoftOsd constructor More...
virtual	~cSoftOsd (void)
	cSoftOsd destructor More...
virtual eOsdError	SetAreas (const tArea *, int)
	Set the sub-areas to the given areas. More...
virtual void	Flush (void)
	Actually commit all data to the OSD hardware. More...
virtual void	SetActive (bool)
	Sets this OSD to be the active one. More...

Private Attributes
cSoftHdDevice *	m_pDevice
	pointer to the cSoftHdDevice object More...
bool	m_dirty
	flag to force redrawing everything More...
int	m_osdLevel
	current osd level More...

Detailed Description

cSoftOsd - SoftHdDevice plugin software OSD class

Definition at line 41 of file softhdosd.h.

Constructor & Destructor Documentation

cSoftOsd()

cSoftOsd::cSoftOsd	(	int	left,
		int	top,
		uint	level,
		cSoftHdDevice *	device
	)

cSoftOsd constructor

Initializes the OSD with the given coordinates.

Parameters

left	x-coordinate of osd on display
top	y-coordinate of osd on display
level	level of the osd (smallest is shown)
device	pointer to cSoftHdDevice object

Definition at line 48 of file softhdosd.cpp.

References L_OSD, LOGDEBUG2, m_osdLevel, and m_pDevice.

~cSoftOsd()

cSoftOsd::~cSoftOsd ( void  )

virtual

cSoftOsd destructor

Shuts down the OSD.

Definition at line 63 of file softhdosd.cpp.

References L_OSD, LOGDEBUG2, m_osdLevel, and SetActive().

Member Function Documentation

Flush()

void cSoftOsd::Flush ( void  )

virtual

Actually commit all data to the OSD hardware.

Definition at line 125 of file softhdosd.cpp.

References cSoftHdDevice::GetOsdSize(), L_OSD, LOGDEBUG2, m_dirty, m_osdLevel, m_pDevice, and cSoftHdDevice::OsdDrawARGB().

Referenced by SetActive().

SetActive()

void cSoftOsd::SetActive ( bool  on )

virtual

Sets this OSD to be the active one.

Parameters

on	true on, false off

Note

only needed as workaround for text2skin plugin with undrawn areas.

Definition at line 78 of file softhdosd.cpp.

References Flush(), L_OSD, LOGDEBUG2, m_dirty, m_osdLevel, m_pDevice, and cSoftHdDevice::OsdClose().

Referenced by ~cSoftOsd().

SetAreas()

eOsdError cSoftOsd::SetAreas ( const tArea *  areas, int  n  )

virtual

Set the sub-areas to the given areas.

Definition at line 101 of file softhdosd.cpp.

References L_OSD, LOGDEBUG2, m_dirty, m_pDevice, and cSoftHdDevice::OsdClose().

Member Data Documentation

m_dirty

bool cSoftOsd::m_dirty

private

flag to force redrawing everything

Definition at line 53 of file softhdosd.h.

Referenced by Flush(), SetActive(), and SetAreas().

m_osdLevel

int cSoftOsd::m_osdLevel

private

current osd level

Definition at line 54 of file softhdosd.h.

Referenced by cSoftOsd(), Flush(), SetActive(), and ~cSoftOsd().

m_pDevice

cSoftHdDevice* cSoftOsd::m_pDevice

private

pointer to the cSoftHdDevice object

Definition at line 52 of file softhdosd.h.

Referenced by cSoftOsd(), Flush(), SetActive(), and SetAreas().

---

The documentation for this class was generated from the following files:

• softhdosd.h
• softhdosd.cpp
